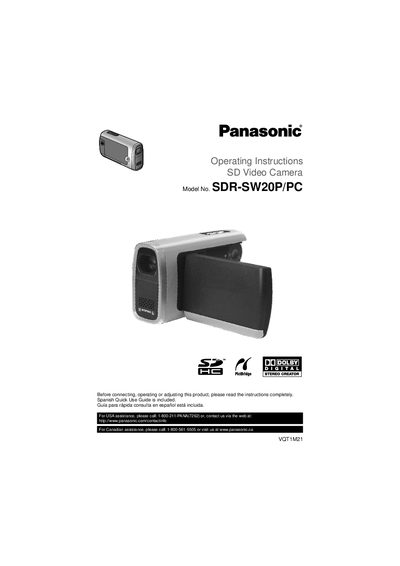

This is an operating instructions manual that provides information on how to connect, operate, and adjust the SD video camera model SDR-SW20P/PC. It also includes safety precautions. The camera is described as sophisticated and reliable.
This manual covers the safe operation of the Panasonic SDR‑SW20P/PC SD video camera, including important safety warnings, battery handling, and proper use of accessories. It also details FCC and Canadian compliance, warranty information, and disposal guidelines.
Special sections describe the camera’s water‑resistance (IP58), underwater usage limits, battery charging procedures, and AC adaptor requirements. Users are instructed on how to protect the lens, avoid exposure to moisture, and maintain the device after underwater use.
| Model No. | SDR‑SW20P |
|---|---|
| Water‑resistance rating | IP58 (IEC 60529) |
| Maximum underwater depth | 1.5 m (5 ft) |
| Operating temperature range | 0 °C to 40 °C |
| Battery type | Lithium‑ion/polymer |
| AC adaptor input voltage | 110 V–240 V |
| U.S./Canada AC voltage requirement | 120 V |
| FCC compliance | Class B digital device (Part 15) |
| Canadian compliance | ICES‑003 (Class B) |
The camera complies with IP58 (IEC 60529) and can be submerged up to 1.5 m for 30 minutes.
Use the specified AC adaptor to recharge the lithium‑ion/polymer battery pack; do not use other chargers.
In the U.S. and Canada the adaptor must be connected to a 120 V AC power supply.
