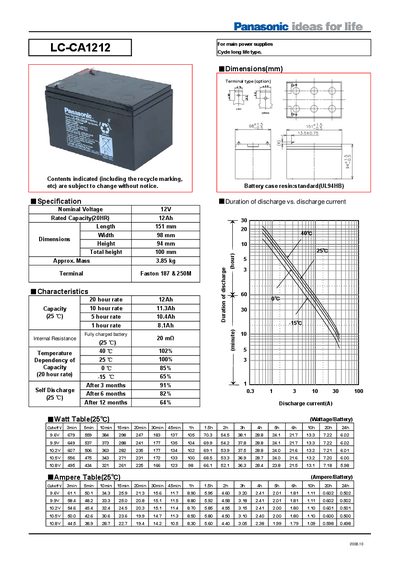

This is a specification table of LC-CA1212 battery, including dimensions, specification, discharge current, discharge voltage, internal resistance and other information
The Panasonic LC-CA1212 is a 12 V lead‑acid battery designed for main power‑supply applications. It features a long‑life cycle design and is housed in a standard UL94HB resin case. Dimensions are 151 mm × 98 mm × 94 mm and the unit weighs approximately 3.85 kg.
The datasheet provides detailed discharge curves, charging methods, and capacity ratings at various discharge rates and temperatures. It also lists terminal types, internal resistance, and recommended charging voltages for optimal performance and longevity.
| Nominal Voltage | 12 V |
|---|---|
| Rated Capacity (20 hr) | 12 Ah |
| Length | 151 mm |
| Width | 98 mm |
| Height | 94 mm |
| Approx. Mass | 3.85 kg |
| Terminal Type | Faston 187 & 250 mΩ |
| Internal Resistance | 20 mΩ |
| Maximum Charging Voltage | 14.5‑14.9 V |
The nominal voltage is 12 V.
The rated capacity is 12 Ah at the 20‑hour rate.
The control (charging) voltage should be between 14.5 V and 14.9 V.
