This document is about the technical specifications of the AK series X type aluminum electrolytic capacitor, including product description, appearance size, technical parameters, etc.

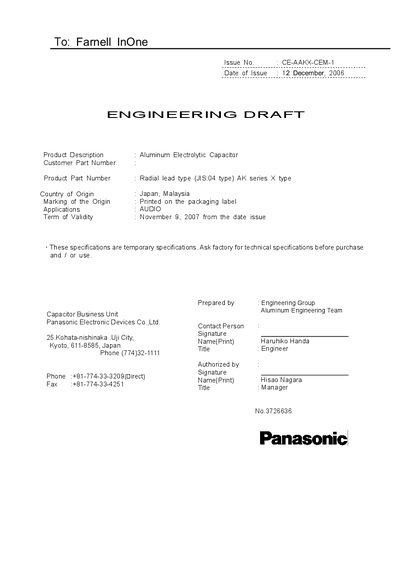

This engineering draft provides the technical specifications, part numbers, dimensions, construction materials and marking information for Panasonic AK series X radial‑lead aluminum electrolytic capacitors. It also lists the applicable standards, RoHS compliance and country of origin (Japan, Malaysia).\n\nThe document includes application guidelines, recommended mounting practices, handling techniques and safety notes for use in audio/visual equipment, computers, industrial robots and other electronic devices. It is intended for design engineers and technicians who need detailed product data before purchase or integration.
| Capacitance coding | 3‑letter code, e.g., 1R0 = 1 µF |
|---|---|
| Lead wire material | Solid tinned copper |
| Separator material | Manila hemp steel wire |
| RoHS compliance | Complies with RoHS Directive |
Yes, the document states that the product complies with the RoHS Directive.
For diameters 6.3 mm–16 mm a minimum of 2 mm clearance is required; 18 mm–35 mm need 3 mm; 40 mm or greater need 5 mm.
