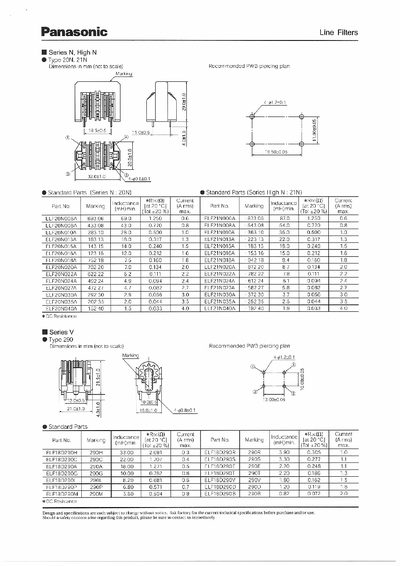

The document provides technical specifications for Panasonic line filter families, covering Series N, High N, and various Series V types (20N, 21N, 290, 450, 21V, 22V, 24V, 200). Each series includes standard parts tables with part numbers, markings, current ratings, tolerance, and DC resistance.
Tables show detailed values such as current rating (Arms), tolerance (+20% max), and DC resistance for each part. A disclaimer notes that designs and specifications may change without notice, and users should contact Panasonic immediately if safety concerns arise.
| Maximum current rating | 100 A |
|---|---|
| DC resistance for 100 A part | 0.0085 Ω |
| Current rating tolerance | +20 % max |
| Current rating for ELF20NOO6A | 20 A |
Contact Panasonic immediately.
Design and specifications are each subject to change without notice.
The tolerance is +20 % max.
