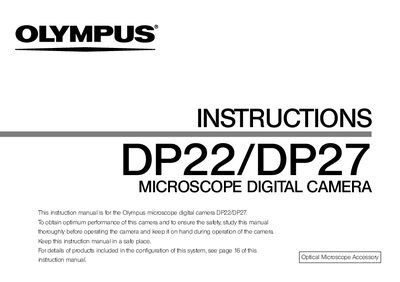

Instruction manual for the Olympus DP22/DP27 microscope digital camera covering safety, installation, operation and specifications.
This manual provides safety and handling precautions, system diagram, assembly steps, software installation and image‑acquisition procedures for the Olympus DP22/DP27 microscope digital camera. It also includes detailed technical specifications, power‑supply guidelines and troubleshooting advice.
The document explains proper use of the supplied power cord, grounding requirements, environmental limits and warranty information, ensuring reliable operation in laboratory settings.
| Sensor size | 1/1.8‑inch color CCD |
|---|---|
| Effective pixels (DP22‑CU) | 2.83 million pixels (total 2.98 million) |
| Maximum recording pixels (DP22‑CU) | 2.76 million pixels (1920 × 1440) |
| Input connector (camera head) | USB 3.0 Micro‑B |
| Power consumption | Less than 4.5 W |
| Operating temperature range | -20 °C to 60 °C |
The camera is rated for ambient temperatures from –20 °C to 60 °C.
No, the device is intended only for capture of digital images, not for clinical diagnostics.
The camera head uses a USB 3.0 Micro‑B connector and the PC side uses a USB 3.0 Type‑A connector.
