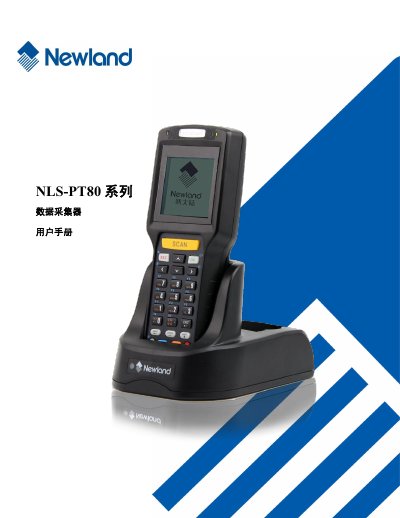

This manual provides operating instructions, setup guides, and troubleshooting tips for the Newland NLS-PT80 handheld data collector.
The Newland NLS-PT80 is a handheld data collector featuring an ARM9 400MHz CPU, 32MB SDRAM, and 128MB Flash. It supports 1D and 2D barcode scanning, WLAN (IEEE 802.11 b/g), and Bluetooth 2.1 + EDR for wireless communication. The device includes a 3.7V, 2300mAh rechargeable lithium polymer battery and an 8-gray-level monochrome display with a resolution of 160 x 160. This manual is written in Chinese.
| Processor | ARM9 400MHz CPU |
|---|---|
| Operating System | Linux compatible |
| Memory | 32MB SDRAM, 128MB Flash |
| Display | 8-gray-level monochrome, 160 x 160 resolution |
| Battery | 3.7V, 2300mAh rechargeable lithium polymer |
| Dimensions | 168.5 x 65 x 39.5 mm |
| Weight | 270g (with battery) |
| Protection Rating | IP54 |
The standard configuration includes the NLS-PT80 data collector, a lithium polymer battery, a carrying strap, and a quick guide.
Unlock the battery cover, lift it off, align the battery contacts with the slot, push the battery in, and lock the cover.
The device operates between -10°C and 50°C (14°F to 122°F).
It supports 1D Laser, 1D CCD, and 2D CMOS formats including Code128, EAN-13, QR Code, and Data Matrix.
