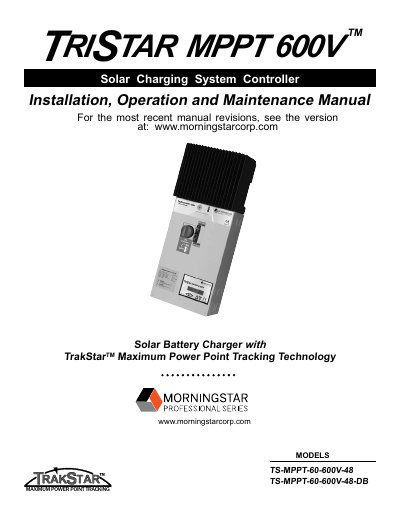

Morningstar TriStar MPPT 600V Solar Charging System Controller User Manual

About this manual

The document serves as the official operator's manual for the TriStar MPPT 600V solar controller, covering models TS-MPPT-60-600V-48 and TS-MPPT-60-600V-48-DB. It details the features of the Maximum Power Point Tracking (MPPT) technology, specifically the TrakStarTM system, and outlines the necessary steps for safe installation and commissioning.

What's inside

• Important Safety Instructions
• Getting Started
• Installation
• Operation
• Networking and Communications
• Troubleshooting
• Maintenance and Service
• Warranty and Claim Procedure
• Technical Specifications
• Certifications

Frequently asked questions

What type of circuits must this charge controller be connected to?

This unit must only be connected to DC circuits.

Where should the TriStar MPPT 600V be mounted?

The controller must be installed indoors and protected from water.

What safety device is required for installations in the United States?

An external Ground Fault Detection Interrupter (GFDI) device must be used.
