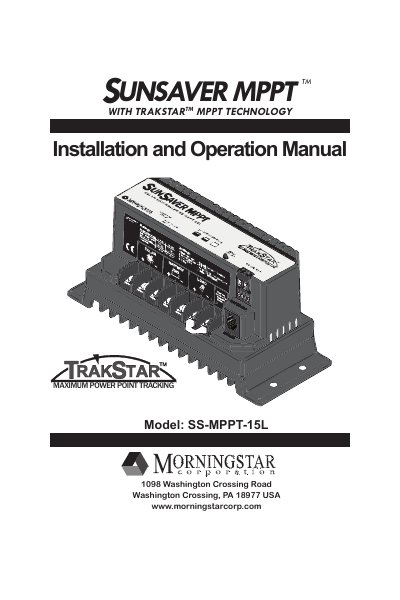

Morningstar SS-MPPT-15L Installation and Operation Manual

This manual introduces the features and characteristics of Morningstar SUNSAVER MPPT TM 15L and its usage methods

Brand: Morningstar
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 21
File format: PDF
File size: 6 MB
Published: 09 July, 2012
Updated: 30 September, 2023
MD5 checksum: 928CF63F7EF63446714DBDE887354DCB
PDF: Morningstar SS-MPPT-15L Installation and Operation Manual PDF

About this manual

The Morningstar SunSaver MPPT (SS-MPPT) is an advanced maximum power point tracking solar battery charger and load controller designed for stand-alone PV systems. It features a smart tracking algorithm to maximize energy from solar modules and includes self-diagnostics and electronic error protection to prevent damage from installation mistakes or system faults. The controller supports 12V and 24V systems with a rated battery current of 15 amps.

What's inside

Important Safety Information
General Information
Installation Instructions
Configuration
Mounting
Wiring
Operation
Troubleshooting
Warranty
Technical Specifications

Specifications

System Voltage	12 Volts / 24 Volts
Rated Battery Current	15 amps
Rated Load Current	15 amps
Max. Input Voltage	75 Volts
Nominal Input Power (12V)	200 Watts
Nominal Input Power (24V)	400 Watts

Frequently asked questions

What battery types does the SS-MPPT support?

The controller supports Gel, Sealed, AGM, and Flooded lead-acid or NiCd batteries.

Is a Remote Temperature Sensor required?

It is strongly recommended to use a Remote Temperature Sensor (RTS) for optimal charging performance.

What is the maximum input voltage?

The maximum input voltage is 75 Volts nominal.
