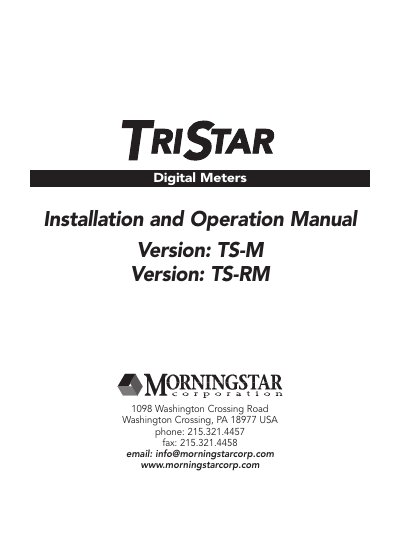

This document is a manual for the installation and operation of digital meters, providing information on the installation, operation, and troubleshooting of TriStar digital meters.
The TriStar digital meters (TS-M and TS-RM) are professional solar system controllers designed for 12, 24, and 48 Vdc systems. The TS-M is a controller-mounted meter that replaces the front access cover, while the TS-RM is a remote version supplied with a 30m (98.4 ft) connecting cable. Both versions feature a 2x16 digital LCD display and provide real-time operating figures, diagnostic capabilities, and manual reset functions.
| Voltage accuracy (12/24V) | ≤0.1 % ± 50 mV |
|---|---|
| Voltage accuracy (48V) | ≤0.1 % ± 100 mV |
| Self-consumption (not backlit) | 7.5 mA |
| Self-consumption (with backlighting) | 42.5 mA |
| LCD temperature rating | -20ºC to +70ºC |
| Mounting plate dimensions | 116 x 116 mm |
| Connector type | RJ-11 (6 pin) |
| TS-M cable length | 0.13m (5 inch) |
| TS-RM cable length | 30m (98.4 ft) |
The meters are rated for an ambient temperature range of -40ºC to +60ºC.
No, there are no user serviceable parts in the meters, and they should not be disassembled or repaired by the user.
