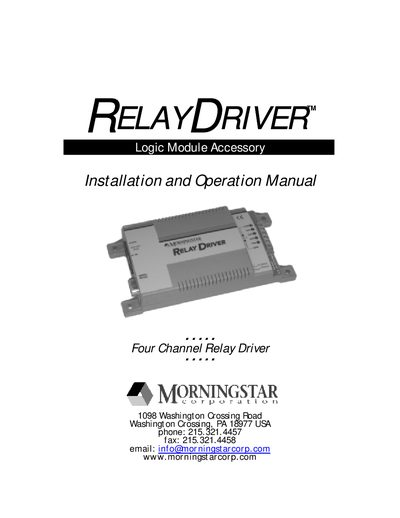

RELAYDRIVER™ Logic Module Accessory Installation and Operation Manual, introducing the features of the four-channel relay driver, and details the installation, configuration, wiring, operation and maintenance of the product.
The document serves as an installation and operation guide for the Morningstar Relay Driver, a Logic Module Accessory designed to monitor battery voltage and system alarms. It details factory default settings, software requirements for PC configuration using MSView, and physical mounting procedures on DIN rails or walls.
The guide covers electrical wiring for power, channels, and meter bus communications, as well as serial RS-232 programming steps. It includes sections on LED indicators, electronic protections like short-circuit and surge protection, maintenance guidelines, and a troubleshooting FAQ section.
| Dimensions (L x W x D) | 162.5mm x 81.3mm x 33.0mm |
|---|---|
| Weight | 0.2 kg / 0.4 lb |
Channel 1 turns OFF when battery voltage is below 11.5V and ON when above 12.6V, with a 1-minute delay.
Channel 4 acts as a TriStar Alarm/Fault Monitor, turning ON when any alarms or faults exist.
The PC must have an Intel 486 or Pentium processor, run Windows 95/98/2000/XP, and have at least 32MB of RAM.
