The PC Meterbus Adapter converts the Morningstar MeterBus RJ-11 electrical interface to a standard RS-232 interface which allows communication between a PC and a Morningstar charge controller or inverter. The MSC is required for programming custom charging setpoints and logging data using Morningstar’s MSView PC software. The MSC is also required for serial communications with any 3rd party hardware that supports Modbus communication.

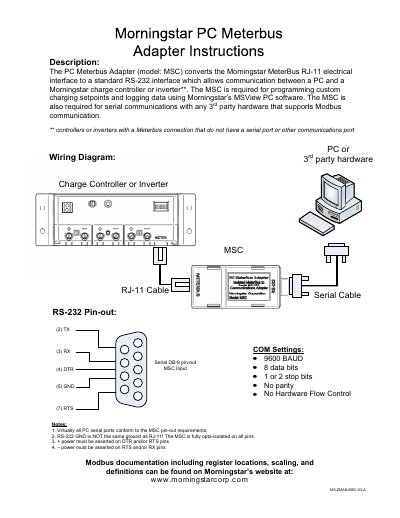

The PC Meterbus Adapter (model: MSC) converts the Morningstar MeterBus RJ-11 electrical interface to a standard RS-232 interface. This allows a PC to communicate with a Morningstar charge controller or inverter that has a Meterbus connection but lacks a serial port or other communications port.
The adapter is required for programming custom charging setpoints and logging data using Morningstar's MSView PC software. It is also necessary for serial communications with any third-party hardware that supports Modbus communication. This manual is written in Chinese.
| Baud Rate | 9600 BAUD |
|---|---|
| Data Bits | 8 data bits |
| Stop Bits | 1 or 2 stop bits |
| Parity | No parity |
| Flow Control | No Hardware Flow Control |
| Isolation | fully opto-isolated on all pins |
The MSC converts the Morningstar MeterBus RJ-11 electrical interface to a standard RS-232 interface which allows communication between a PC and a Morningstar charge controller or inverter.
Yes, the MSC is required for programming custom charging setpoints and logging data using Morningstar's MSView PC software.
Yes, the MSC is required for serial communications with any 3rd party hardware that supports Modbus communication.
