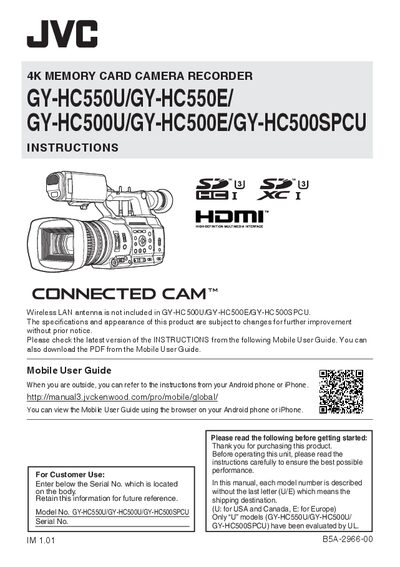

The JVC user manual provides safety instructions, setup steps, and operating details for the GY‑HC550U, GY‑HC500U, and GY‑HC500SPCU 4K memory‑card camera…
This manual begins with important safety instructions, covering electrical shock hazards, battery handling, and RF exposure. It also explains regulatory compliance, including FCC and Canadian requirements, and provides guidance on proper installation and ventilation.
Later sections describe the camera’s specifications, such as power requirements, wireless LAN capabilities, video/audio outputs, and accessories. Dimensional drawings and part numbers are included to aid servicing and replacement.
| Power Input | DC 12 V |
|---|---|
| Power Consumption | Approx. 24.0 W (viewfinder mode) |
| Mass | Approx. 3.6 kg (with battery attached) |
| Operating Temperature | 0 °C to 40 °C |
| Wireless LAN | IEEE 802.11a/b/g/n/ac (2.4 GHz/5 GHz) |
| HDMI Output | Type A connector |
No, the wireless LAN antenna is not included with the GY‑HC500U (or GY‑HC500E/SPCU) models.
Replace the battery with a CR2025 from Panasonic, Sanyo, Sony, or Maxell; do not recharge, disassemble, or heat above 100 °C.
The camera can operate between 0 °C and 40 °C (32 °F to 104 °F).
