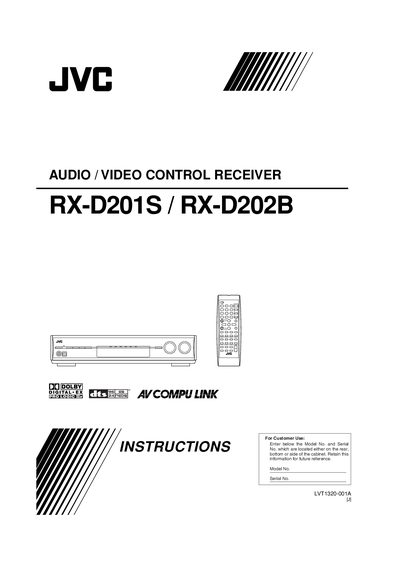

The JVC RX-D201S/RX-D202B audio/video control receiver user manual provides setup, operation, connection, and safety instructions.
This manual guides users through installing and configuring the JVC RX-D201S/RX-D202B audio/video control receiver. It covers safety warnings, required accessories, antenna and speaker connections, and basic operation of the remote control and front‑panel functions.
Detailed sections explain how to connect FM/AM antennas, video components, and external speakers, as well as how to adjust audio settings, use the Midnight mode, and troubleshoot common issues. Technical specifications for audio output power, input sensitivity, and video signal levels are listed at the end of the document.
| Amplifier Output Power (Front channels) | 100 W per channel, min. RMS, 6 Ω |
|---|---|
| Audio Input Sensitivity (DVR/DVD, VCR, DBS, TV) | 270 mV / 47 kΩ |
| Frequency Response | 20 Hz – 20 kHz (±1 dB) |
| Video Input Sensitivity (Composite video) | 1 V p‑p / 75 Ω |
Each front channel delivers a minimum of 100 W RMS into a 6 Ω load at 40 Hz–20 kHz with no more than 0.8 % THD.
