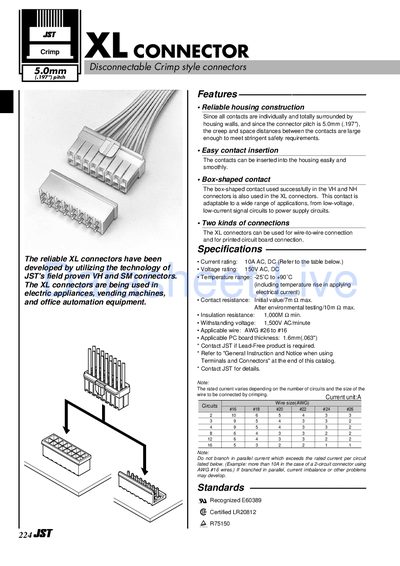

The JST XL connector datasheet provides specifications, dimensions, and material details for the XL series connectors used in various equipment.
The XL series connectors from JST are designed for electric appliances, vending machines, and office automation equipment. They feature a reliable housing, easy contact insertion, and a box‑shaped contact suitable for low‑voltage signal to power supply circuits, with options for wire‑to‑wire or PCB connections.
Key specifications include a 10 A current rating, 150 V voltage rating, operating temperature from –25 °C to +90 °C, and insulation resistance of 1 000 MΩ. The connectors use a 5.0 mm pitch, support AWG #26‑#16 wire sizes, and are compatible with 1.6 mm PCB thickness. Materials are phosphor‑bronze contacts with tin plating and nylon‑66 housing.
| Current rating | 10A AC, DC |
|---|---|
| Voltage rating | 150V AC, DC |
| Temperature range | -25 °C to +90 °C |
| Contact resistance | Initial value/7m Ωmax. |
| Insulation resistance | 1,000 MΩ min. |
| Withstanding voltage | 1,500 V AC/minute |
| Applicable wire | AWG #26 to #16 |
| Applicable PCB thickness | 1.6 mm |
| Connector pitch | 5.0 mm |
The XL connectors are rated for 10 A AC and DC.
They accept wire sizes from AWG #26 up to #16.
They operate from –25 °C to +90 °C, including temperature rise under load.
The connectors are rated for 150 V AC and DC.
