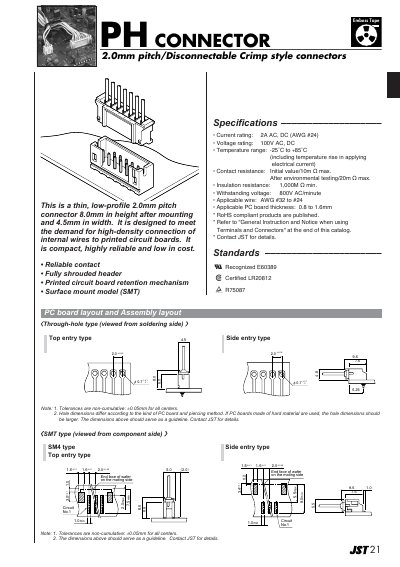

This is a thin, low-profile 2.0mm pitch connector 8.0mm in height after mounting and 4.5mm in width. It is designed to meet the demand for high-density connection of internal wires to printed circuit boards. It is compact, highly reliable and low in cost.
The PH series is a thin, low‑profile 2.0 mm pitch connector designed for high‑density connections on printed circuit boards. It offers a compact height of 8.0 mm after mounting, a fully shrouded header, and both surface‑mount (SMT) and through‑hole options.
The catalog lists detailed electrical ratings, mechanical dimensions, material finishes, and part numbers for a wide range of top‑entry and side‑entry configurations, along with tape‑feeding specifications for automated assembly.
| Current rating | 2 A AC, DC (AWG #24) |
|---|---|
| Voltage rating | 100 V AC, DC |
| Temperature range | -25 °C to +85 °C |
| Contact resistance | Initial value/10 mΩ max.; after environmental testing/20 mΩ max. |
| Insulation resistance | 1 000 MΩ min. |
| Withstanding voltage | 800 V AC/minute |
| Applicable wire | AWG #32 to #24 |
| Applicable PCB thickness | 0.8 mm to 1.6 mm |
The PH connector is rated for 2 A AC and DC (AWG #24).
The connector accepts wires from AWG #32 up to AWG #24.
It operates from –25 °C to +85 °C, including temperature rise under load.
Yes, the catalog notes that the products are RoHS compliant.
