The PA series connector is a 2.0mm pitch connector with a removable terminal and meets the requirements of various complex wire harnesses.

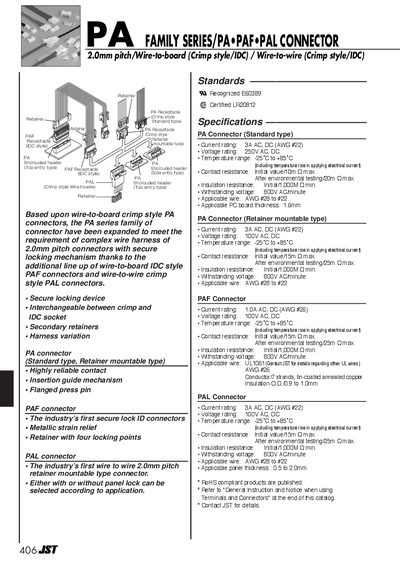

The document describes the PA family of 2.0 mm pitch connectors, including the standard PA, the PAF IDC style, and the PAL wire‑to‑wire style. It outlines the mechanical features such as secure locking devices, interchangeable retainers, and shrouded headers.
Technical data for each connector type is presented, covering current and voltage ratings, temperature range, insulation resistance, applicable wire gauges, and material finishes. Additional sections detail crimp applicator tooling, taping specifications, and part numbers for various circuit counts.
| Current rating (PA standard) | 3A AC, DC (AWG #22) |
|---|---|
| Voltage rating (PA standard) | 250V AC, DC |
| Current rating (PA retainer mountable) | 3A AC, DC (AWG #22) |
| Voltage rating (PA retainer mountable) | 100V AC, DC |
| Current rating (PAF) | 1.0A AC, DC (AWG #26) |
| Voltage rating (PAF) | 100V AC, DC |
| Current rating (PAL) | 3A AC, DC (AWG #22) |
| Voltage rating (PAL) | 100V AC, DC |
| Temperature range (all types) | -25°C to +85°C |
| Insulation resistance (initial) | ≥ 100MΩ |
| Withstanding voltage | 800V AC/minute |
| Applicable wire (PA series) | AWG #28 to #22 |
| Applicable panel thickness (PAL) | 0.5 to 2.0 mm |
| RoHS compliance | Yes |
The PA standard type connector is rated for 3 A AC and DC (AWG #22).
The PA retainer mountable type connector is rated for 100 V AC and DC.
All PA series connectors operate from –25 °C to +85 °C.
Yes, the PA series connectors are RoHS compliant.
