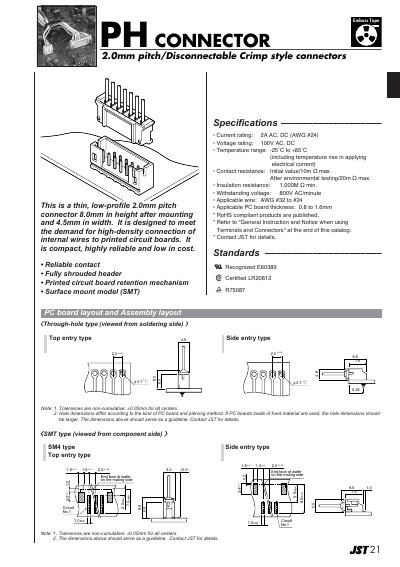

This is a thin, low-profile 2.0mm pitch connector 8.0mm in height after mounting and 4.5mm in width. It is designed to meet the demand for high-density connection of internal wires to printed circuit boards. It is compact, highly reliable and low in cost.
The PH connector series is a thin, low‑profile 2.0 mm pitch connector designed for high‑density connections on printed circuit boards. It offers a compact height of 8.0 mm after mounting, reliable contacts, and a fully shrouded header.
The document lists technical specifications, model numbers, material finishes, crimping applicator information, and taping dimensions for both top‑entry and side‑entry types. It also includes RoHS compliance notes and ordering guidance.
| Current rating | 2A AC, DC (AWG #24) |
|---|---|
| Voltage rating | 100V AC, DC |
| Temperature range | -25°C to +85°C |
| Withstanding voltage | 800V AC/minute |
| Applicable wire | AWG #32 to #24 |
| Applicable PCB thickness | 0.8 to 1.6 mm |
The PH connector is rated for 2 A AC and DC (AWG #24).
It supports wires from AWG #32 up to AWG #24.
The connector works from –25 °C to +85 °C, including temperature rise under load.
Yes, the product is listed as RoHS compliant in the manual.
