This document provides dimensions information of wire connectors, including American, Metric and JIS standards.

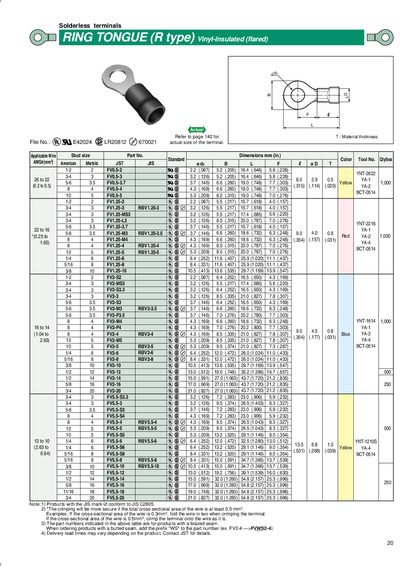

This leaflet provides a comprehensive list of JST solderless terminals, including part numbers, dimensions, wire‑size compatibility, and material specifications. It is intended for engineers and purchasing personnel who need to select the correct terminal for a given application.
The document also includes important notes on JIS compliance, recommended wire cross‑sectional area, and ordering conventions for butted‑seam parts, as well as a reference to material‑thickness information on page 142.
| Minimum wire cross‑sectional area | 0.5 mm² |
|---|---|
| Butted‑seam part number prefix | "WS" |
| JIS compliance | JIS C2805 |
| Material thickness reference | Page 142 |
The crimping will be more secure if the total cross‑sectional area of the wire is at least 0.5 mm².
Add the prefix "WS" to the part number when ordering butted‑seam products.
They conform to JIS C2805.
Refer to page 142 of the document for material thickness details.
