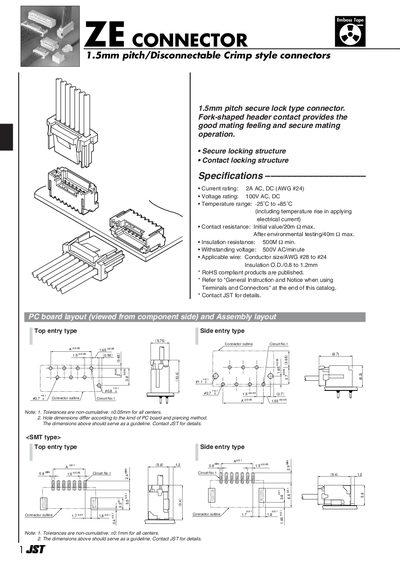

1 ZE CONNECTOR 1.5mm pitch/Disconnectable Crimp style connectors is a connector product produced by JST company. It has a secure locking structure and a contact locking structure. The rated current of this product is 2A AC, DC (AWG #24), the rated voltage is 100V AC, DC, and the temperature range is -25˚C to +85˚C (including temperature rise when applying electrical current).
The ZE CONNECTOR line from JST provides 1.5 mm pitch, disconnectable crimp style connectors designed for secure mating and reliable electrical performance. The series includes top‑entry and side‑entry types with various circuit counts and optional boss features.
Technical specifications cover current and voltage ratings, temperature range, contact and insulation resistance, and material finishes. Connectors are made from copper‑alloy, tin‑plated contacts and glass‑filled PA 66 housings, and all parts comply with RoHS directives. Ordering information, model numbers and dimensional data are provided for each variant.
| Current rating | 2 A AC, DC (AWG #24) |
|---|---|
| Voltage rating | 100 V AC, DC |
| Temperature range | -25 °C to +85 °C |
| Applicable wire size | AWG #28 to #24 (Insulation O.D. 0.8–1.2 mm) |
| RoHS compliance | Yes |
The connector is rated for 2 A AC and DC.
It supports conductor sizes from AWG #28 to #24 with insulation outer diameters of 0.8 mm to 1.2 mm.
Yes, the product is RoHS compliant.
