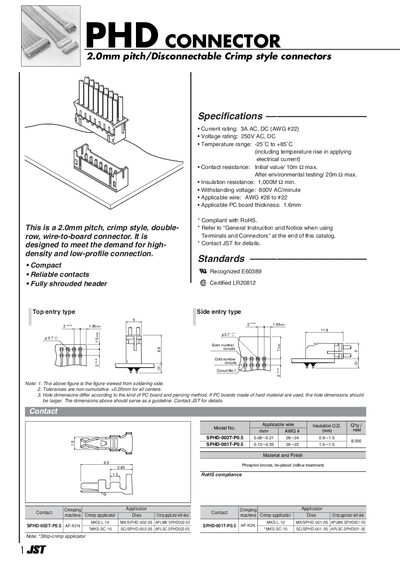

The JST PHD CONNECTOR 2.0mm pitch disconnectable crimp style connector datasheet provides specifications, dimensions, material, and electrical ratings.
The PHD CONNECTOR is a 2.0 mm pitch, double‑row, wire‑to‑board connector designed for high‑density, low‑profile applications. It offers a compact, fully shrouded header with reliable contacts.
Key electrical specifications include a 3 A current rating, 250 V voltage rating, and operation from –25 °C to +85 °C. The connector meets RoHS requirements and provides high insulation resistance and withstanding voltage for robust performance.
| Current rating | 3A AC, DC (AWG #22) |
|---|---|
| Voltage rating | 250V AC, DC |
| Temperature range | -25 °C to +85 °C |
| Contact resistance | Initial 10 mΩ max, 20 mΩ max after testing |
| Insulation resistance | 1,000 MΩ min |
| Withstanding voltage | 800 V AC/minute |
| Applicable wire | AWG #28 to #22 |
| Material and finish | Phosphor bronze, tin‑plated (reflow treatment) |
| RoHS compliance | Yes |
It is rated for 3 A AC and DC (AWG #22).
The connector is rated for 250 V AC/DC and can withstand up to 800 V AC per minute.
Yes, it complies with RoHS standards.
It operates from –25 °C to +85 °C.
