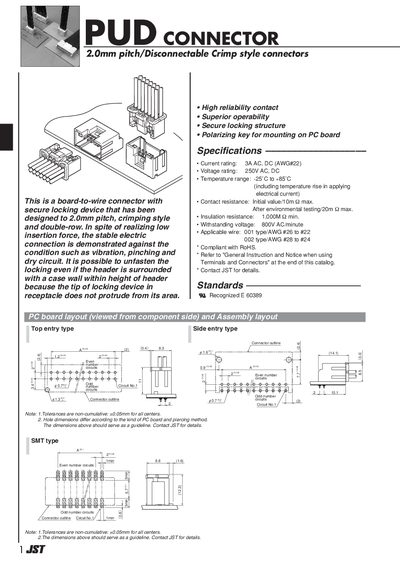

This document provides detailed information on JST's PUD connector, including dimensions, installation, and features.
JST's PUD Connectors are board‑to‑wire connectors with a secure locking device, designed for a 2.0 mm pitch and crimping style. They offer low insertion force while maintaining stable electrical connections under vibration, pinching, and dry‑circuit conditions.
The leaflet lists detailed specifications such as current and voltage ratings, temperature range, insulation resistance, and compatible wire sizes, along with material, finish, and RoHS compliance information for various connector models.
| Current rating | 3A AC, DG (AWG#22) |
|---|---|
| Voltage rating | 250V AC, DC |
| Temperature range | -25°C to +85°C |
| Insulation resistance | 1,000MΩ min. |
| Withstanding voltage | 800V AC/minute |
| Applicable wire size | AWG #26 to #22 (001 type) and #28 to #24 (002 type) |
| RoHS compliance | Yes |
| Pitch | 2.0 mm |
The connector is rated for 3 A AC, DG (AWG#22).
It operates from –25 °C up to +85 °C.
Yes, the connector complies with RoHS requirements.
The connector has a 2.0 mm pitch.
