The Intermec 1151E handheld barcode scanner offers long‑depth scanning, high precision, IP54 protection and robust performance for industrial use.
The Intermec 1151E is a high‑precision, long‑depth handheld barcode scanner designed for demanding industrial environments. It features a Sabre155X industrial structure and a laser linear scan engine, providing durable operation with dust, moisture, rain, vibration, shock, impact and low‑temperature resistance.

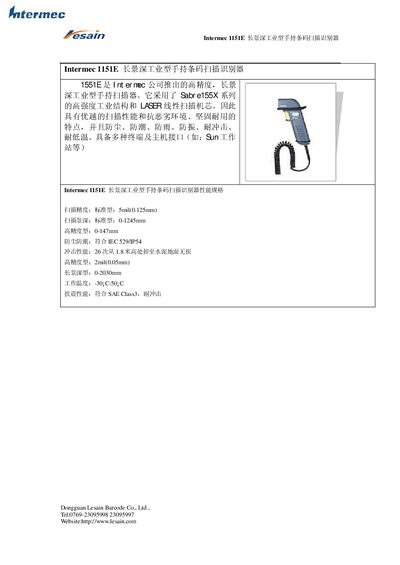

This data sheet lists the scanner’s key specifications, including scanning accuracy, depth ranges, environmental protection ratings, impact resistance, operating temperature and shock class, allowing users to assess its suitability for their applications. This manual is written in Chinese.
| Scanning accuracy (standard) | 5 mil (0.125 mm) |
|---|---|
| Scanning accuracy (high precision) | 2 mil (0.05 mm) |
| Scanning depth (standard) | 0‑1245 mm |
| Scanning depth (high precision) | 0‑147 mm |
| Scanning depth (long depth) | 0‑2030 mm |
| Dust / moisture protection | IEC 529 / IP54 |
| Impact resistance | 26 drops from 1.8 m onto concrete, no damage |
| Operating temperature | -30 °C to 50 °C |
| Shock resistance | SAE Class 3 |
It meets IEC 529 and IP54 standards for dust and moisture protection.
It can withstand 26 drops from a height of 1.8 m onto a concrete floor without damage.
