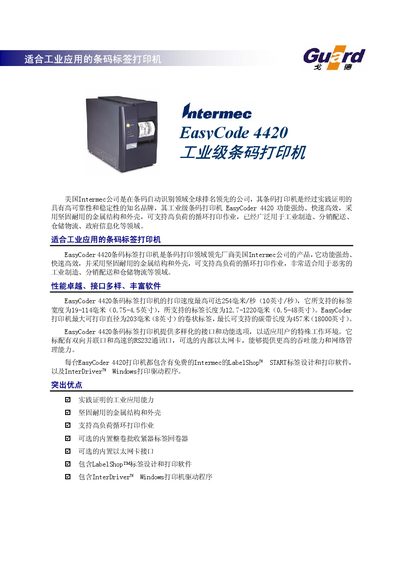

The Intermec EasyCoder 4420 manual provides specifications, features, and operating instructions for the industrial barcode printer.
The EasyCoder 4420 is an industrial‑grade barcode printer from Intermec, built with a rugged metal housing for high‑load, continuous printing in manufacturing, distribution, and logistics environments. It supports both thermal transfer and direct‑thermal printing and offers a range of connectivity options, including standard serial and parallel ports, optional Ethernet, and Twinax/Coax interfaces.
The manual details the printer’s technical specifications, such as printing speed up to 254 mm/s, maximum label width of 112 mm, and a variety of supported barcode symbologies. It also lists the included software tools—LabelShop™ START for label design and InterDriver™ for Windows printing—along with optional accessories and environmental operating limits. This manual is written in Chinese.
| Printing speed | 50.8‑254 mm/s (2‑10 in/s) |
|---|---|
| Resolution | 8 dots/mm (203 dpi) |
| Maximum print width | 112 mm (4.4 in) |
| Power supply | 110‑230 V AC, 50‑60 Hz |
| Dimensions | 438 × 248 × 419 mm (17.25 × 9.75 × 16.5 in) |
| Weight | 19.35 kg (43 lb) |
| Operating temperature | 0‑40 °C (32‑104 °F) |
| Label width range | 19‑114 mm (0.75‑4.5 in) |
| Ribbon width options | 53.8‑114.3 mm (2.12‑4.5 in) |
It supports both thermal transfer and direct‑thermal (heat‑sensitive) printing.
Standard serial and IEEE 1284 parallel ports are included, with optional built‑in Ethernet and Twinax/Coax interfaces.
The printer comes with LabelShop™ START label design software and the InterDriver™ Windows printer driver.
