The Intermec Easycoder PC4/PC41 is an industrial barcode label printer with thermal/thermal‑transfer printing, up to 102 mm/s speed and multiple interfaces.
The Easycoder PC4/PC41 series is a compact, rugged industrial barcode label printer that supports both thermal and thermal‑transfer printing. It features a dual‑layer shell for easy loading of labels and ribbons, an automatic label peeler, and QuickMount™ tool‑free printhead changes.

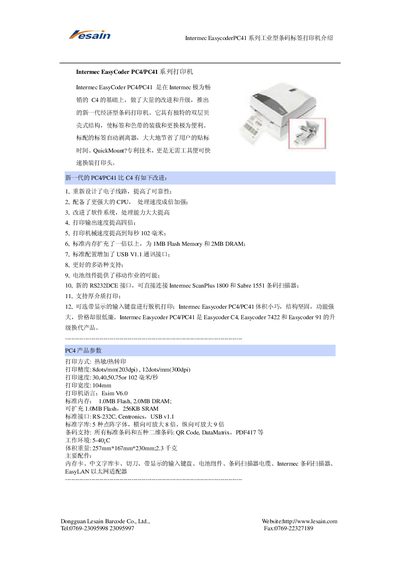

Key specifications include printing speeds up to 102 mm/s, a maximum print width of 108 mm, 8‑12 dots/mm resolution, and interfaces such as RS‑232C, Centronics, USB 1.1, and optional Ethernet adapters. The printer operates in temperatures from 5 °C to 40 °C and weighs 2.3 kg. This manual is written in Chinese.
| Printing method | Thermal / Thermal‑transfer |
|---|---|
| Printing resolution | 8 dots/mm (203 dpi) , 12 dots/mm (300 dpi) |
| Printing speed | 30, 40, 50, 75 or 102 mm/s |
| Barcode support | All standard barcodes plus QR Code, DataMatrix, PDF417 |
| Operating environment | 5 °C – 40 °C |
| Dimensions (L×W×H) | 257 mm × 167 mm × 230 mm |
| Weight | 2.3 kg |
The printer can operate at 30, 40, 50, 75 or 102 mm per second depending on the selected mode.
It supports all standard 1‑D barcodes and five 2‑D barcodes: QR Code, DataMatrix, PDF417, etc.
The PC41 can print labels up to 108 mm wide.
