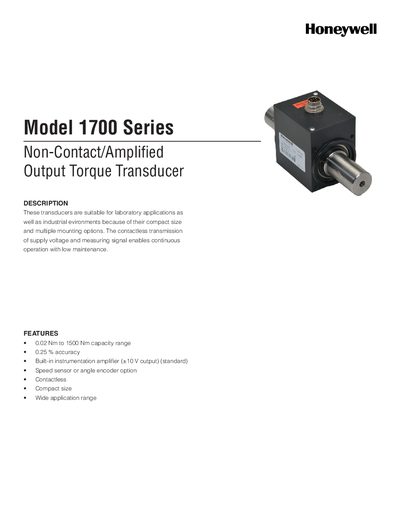

The Honeywell 1700 Series non‑contact amplified output torque transducer offers 0.02‑1500 Nm range, 0.25 % accuracy and optional speed or angle sensing.
The 1700 Series torque transducer provides contact‑less measurement of torque from 0.02 Nm up to 1500 Nm with a compact size and multiple mounting options. It includes a built‑in instrumentation amplifier delivering a ±10 V output and can be equipped with optional speed‑sensor or angle‑encoder modules.
Key specifications include a supply voltage of 12 Vdc ±10 %, current consumption under 200 mA, rise time of 2 ms, and a limit frequency of 200 Hz. Optional speed sensing supports up to 10 000 RPM (60 pulses/rev) and angle sensing provides 1° resolution up to 3000 RPM. Mechanical overload is rated at 200 % of the nominal output.
| Torque range | 0.02 Nm to 1500 Nm |
|---|---|
| Accuracy | 0.25 % (overall <0.25 %) |
| Supply voltage | 12 Vdc ±10 % |
| Current consumption | <200 mA |
| Rise time | 2 ms |
| Limit frequency (3 dB) | 200 Hz |
| Voltage output | 0 V to ±10 V |
| Internal resistance | 100 Ω |
| Ripple | <100 mVpp |
| Overall accuracy | <0.25 % |
| Mechanical overload | 200 % of rated output |
| Speed sensor max speed | 10 000 RPM |
| Speed sensor pulses per rev | 60 |
| Angle encoder max speed | 3 000 RPM |
| Angle resolution | 1° |
It measures torque from 0.02 Nm up to 1500 Nm.
The transducer provides 0.25 % accuracy, with an overall accuracy of less than 0.25 %.
It operates from a 12 Vdc supply with a tolerance of ±10 %.
