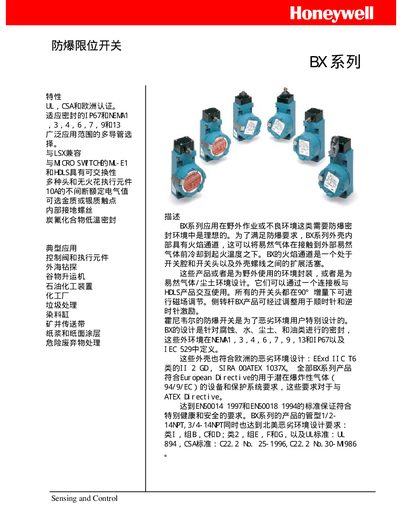

Technical data sheet for Honeywell BX Series explosion‑proof limit switches, covering specifications, certifications and accessories.
The Honeywell BX Series explosion‑proof limit switches are designed for harsh environments such as offshore drilling, chemical plants, waste handling and mining. They feature a flame‑path enclosure, sealed contacts (gold or silver), and are rated for IP67 and multiple NEMA protection classes.
The switches are available with various actuator types, 20 mm conduit connections, and electrical ratings up to 10 A at 600 Vac/250 Vdc. Certifications include UL, CSA, CE, ATEX, and European EExd IIC T6 standards. Accessories such as standard and adjustable levers are provided for different installation needs. This manual is written in Chinese.
| Electrical rating | 10 A |
|---|---|
| Voltage rating | 600 Vac / 250 Vdc |
| Operating temperature range | -40 °C to 70 °C |
| Contact material | Gold or silver |
| Operating force | 0.45 N max. |
| Port type | 20 mm conduit |
| Actuator type | Lateral lever (侧向转杆) |
The switches are rated for a continuous current of 10 A.
The switches operate from –40 °C up to 70 °C.
