The Honeywell MCT404 is a handheld multi‑protocol communicator for HART and DE field devices, featuring IP65 protection and optional intrinsic safety.
The MCT404 is a portable engineering tool that runs on an Intermec‑based PDA platform. It provides configuration, monitoring, diagnostics and management of smart field instruments using both HART and Honeywell DE protocols. Two software packages – the MCT software suite for DE devices and FDC 2.X for HART devices – are included, enabling universal field device configuration.

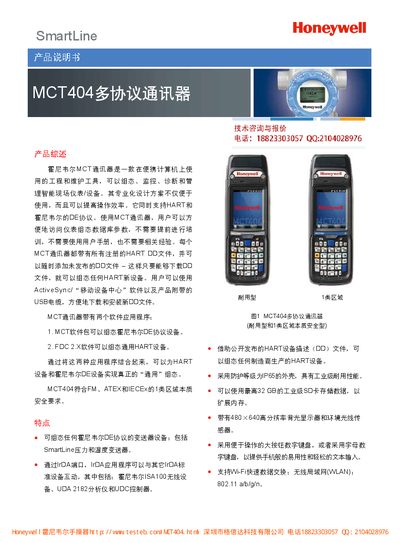

The device is available in a rugged version and an intrinsically safe version certified for FM, ATEX and IECEx 1‑class zones. It offers Wi‑Fi, Bluetooth, IrDA, USB, and a 3.5‑inch color touchscreen with 640×480 resolution, plus up to 32 GB of SD storage and a rechargeable lithium battery. This manual is written in Chinese.
| Processor | Intermec 70 series PDA OMAP multi‑core, 1 GHz |
|---|---|
| Memory | 512 MB RAM, 1 GB flash |
| External Storage | Supports up to 32 GB micro‑SD card |
| Operating System | Windows Embedded Handheld 6.5.3 |
| Display | 3.5‑inch VGA transmissive TFT‑LCD, 640×480 pixels, LED backlight |
| Interfaces | USB Full Speed 2.0, IrDA, Wi‑Fi 802.11 a/b/g/n, Bluetooth |
| Battery | Rechargeable and replaceable Li‑ion battery |
| Dimensions (L×W×H) | 224 mm × 85 mm × 58 mm |
| Weight (incl. battery) | ≈1 060 g |
| Operating Temperature | -10 °C to +50 °C |
| IP Rating | IP65 (dust‑tight, water‑proof) |
The MCT404 supports both HART and Honeywell’s DE (Digital Encryption) protocols.
The device is offered in a rugged version and an intrinsically safe version certified for FM, ATEX and IECEx 1‑class zones.
New DD files can be downloaded via a computer connection using ActiveSync or directly from the HART website and loaded onto the device.
