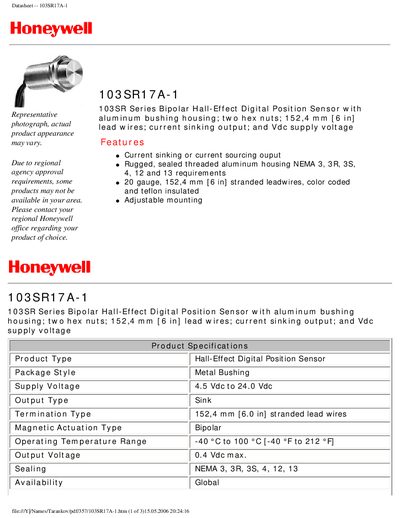

Technical specifications and safety warnings for the Honeywell 103SR17A-1 bipolar Hall‑Effect digital position sensor.
The Honeywell 103SR17A-1 is a bipolar Hall‑Effect digital position sensor housed in a sealed threaded aluminum bushing. It features current sinking or sourcing output, rugged NEMA‑rated construction, and 152.4 mm (6 in) color‑coded, Teflon‑insulated lead wires.
The datasheet provides detailed electrical characteristics, including supply voltage, output type, temperature range, and current limits, as well as important safety notices that the sensor must not be used as a safety or emergency‑stop device.
| Supply Voltage | 4.5 Vdc to 24.0 Vdc |
|---|---|
| Output Type | Sink |
| Operating Temperature Range | -40 °C to 100 °C |
| Output Voltage (max) | 0.4 Vdc |
| Supply Current (max @ 25 °C) | 10 mA |
| Output Current (max) | 20 mA |
| Operate Point @ 25 °C | 5.0 mT max. |
| Release Point @ 25 °C | -5.0 mT min. |
| Differential | 10.0 mT min. |
| Lead Wire Length | 152.4 mm (6 in) |
It operates from 4.5 Vdc up to 24.0 Vdc.
The sensor provides a current‑sinking output.
No. The document warns not to use this product as a safety or emergency‑stop device because failure could cause injury or death.
The maximum output current is 20 mA.
