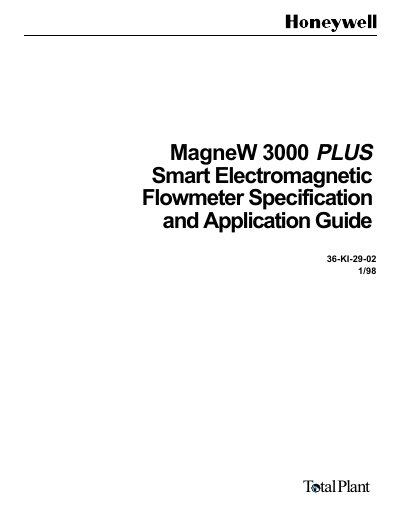

The Honeywell MagneW 3000 PLUS guide provides specifications, features, wiring, installation, and application data for the electromagnetic flowmeter.
The MagneW 3000 PLUS is an electromagnetic flowmeter offered by Honeywell. This guide details the device’s principle of operation, hardware configurations (integral and remote), and the wide range of detector and converter options available.
Key sections cover features such as a back‑lit LCD, field‑replaceable electrodes, and PFA lining, as well as wiring summaries, installation planning, environmental limits, detailed specifications, dimensions, and ordering information. The document also includes an application data worksheet to assist in selecting the proper model for a given process.
| Accuracy (2.5‑15 mm, 1‑10 m/s) | ±0.5% of indicated value |
|---|---|
| Accuracy (25‑600 mm, 1‑10 m/s) | ±0.5% of indicated value |
| Minimum fluid conductivity | 3 µS/cm (300 µS/m) |
| Output signal | 4‑20 mA DC |
The flowmeter can be installed as an integral unit (converter mounted on the detector) or as a remote unit with separate detector and converter, using wafer, flange, union, hose, IDF or Tri‑Clamp pipe connections.
The fluid must have an electrical conductivity of at least 3 µS/cm (300 µS/m).
The device is powered from a 4‑20 mA loop with a 24 VDC supply and provides a 4‑20 mA current output (or 250‑1460 Ω load in DE mode).
