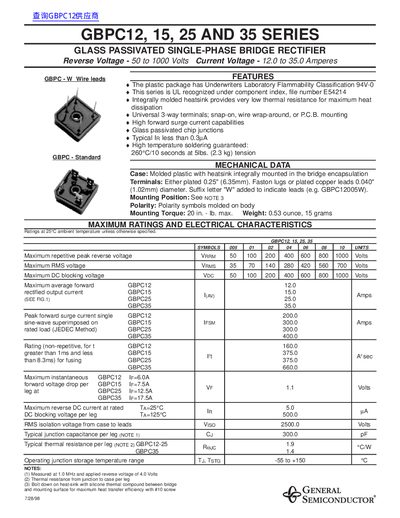

GBPC12, 15, 25 and 35 series glass passivated single-phase bridge rectifiers, reverse voltage 50 to 1000 volts, current voltage 12.0 to 35.0 amperes
The GBPC12/15/25/35 series are glass‑passivated single‑phase bridge rectifiers offered in a molded‑plastic package with an integrally mounted heatsink. They feature UL‑94V‑0 flammability, low thermal resistance, universal 3‑way terminals and high forward surge capability.
The document provides mechanical data, maximum voltage and current ratings, thermal characteristics, and detailed performance curves for each series member. It also includes mounting recommendations and typical electrical parameters such as reverse voltage, forward current, junction capacitance and thermal resistance.
| Maximum Repetitive Peak Reverse Voltage (VRRM) | 50 V – 1000 V |
|---|---|
| Maximum RMS Voltage (VRMS) | 35 V – 700 V |
| Typical Thermal Resistance per Leg (RθJC) | 1.9 °C/W |
| Typical Junction Capacitance per Leg | 300 pF |
| Weight | 0.53 oz (15 g) |
| Mounting Torque | 20 in‑lb max |
| Operating Temperature Range | -55 °C to +150 °C |
The series is rated up to 1000 V reverse voltage, depending on the specific model.
Typical thermal resistance per leg is 1.9 °C/W.
They are specified for storage temperatures from –55 °C to +150 °C.
