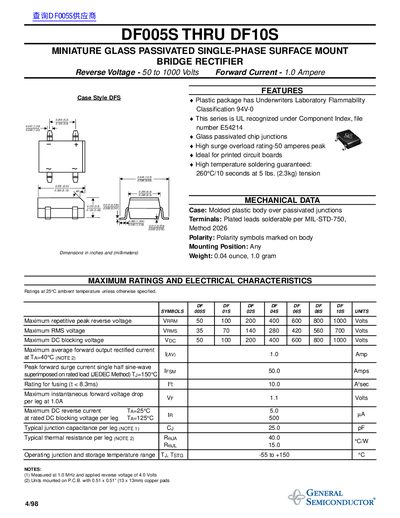

This document describes the DF005S to DF10S series of miniature glass passivated single-phase surface mount bridge rectifiers. Features include a plastic package with UL94V-0 flammability classification, glass passivated chip junctions, high surge overload rating, ideal for printed circuit boards, high temperature soldering guaranteed, and various maximum ratings and electrical characteristics.
The DF005S‑DF10S series are miniature glass‑passivated single‑phase surface‑mount bridge rectifiers offered by General Semiconductor. They feature a molded plastic package with UL 94V‑0 flammability rating, high surge overload capability (50 A peak), and are suitable for printed circuit board mounting.
The handbook provides detailed electrical characteristics, including reverse voltage ratings from 50 V to 1000 V, forward current of 1.0 A, peak surge current of 50 A, and operating temperature range from –55 °C to +150 °C. Mechanical data, thermal impedance curves, and typical performance graphs are also included.
| Reverse Voltage | 50‑1000 V |
|---|---|
| Forward Current | 1.0 A |
| Maximum Repetitive Peak Reverse Voltage (VRRM) | 50‑1000 V |
| Maximum Average Forward Output Current (Iav) | 1.0 A |
| Maximum Instantaneous Forward Voltage Drop (VF) | 14 V at 1.0 A |
| Maximum DC Reverse Current (IR) | 5 µA at 25 °C |
| Operating Temperature Range | -55 °C to +150 °C |
| Weight | 0.04 oz (1.0 g) |
| Package Type | Molded plastic body over passivated junctions |
| UL Flammability Classification | 94V‑0 |
The series is rated for reverse voltages from 50 V up to 1000 V.
The maximum average forward output current is 1.0 A.
They operate from –55 °C to +150 °C (junction and storage).
