Technical datasheet for the Fairchild FGH40N60UF Field Stop IGBT, detailing electrical characteristics, thermal data, and mechanical dimensions for TO-247AB…

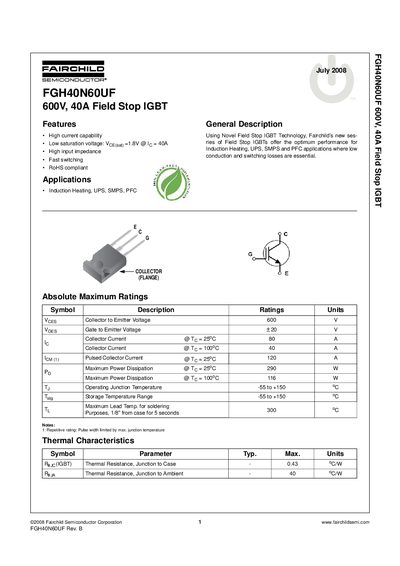

This document is a datasheet for the FGH40N60UF 600V, 40A Field Stop IGBT manufactured by Fairchild Semiconductor. It utilizes Novel Field Stop IGBT Technology to offer optimum performance for applications such as induction heating, UPS, SMPS, and PFC where low conduction and switching losses are essential. The device features high current capability, low saturation voltage, and RoHS compliance.
| Collector to Emitter Voltage | 600 V |
|---|---|
| Pulsed Collector Current @ TC = 25°C | 120 A |
| Maximum Power Dissipation @ TC = 25°C | 290 W |
| Operating Junction Temperature | -55 to +150°C |
| Thermal Resistance, Junction to Case | 0.43°C/W |
| Thermal Resistance, Junction to Ambient | 40°C/W |
| Package Type | TO-247 |
The device is designed for induction heating, UPS, SMPS, and PFC applications.
Yes, the datasheet lists the product as RoHS compliant.
The maximum power dissipation at a case temperature of 25°C is 290 W.
