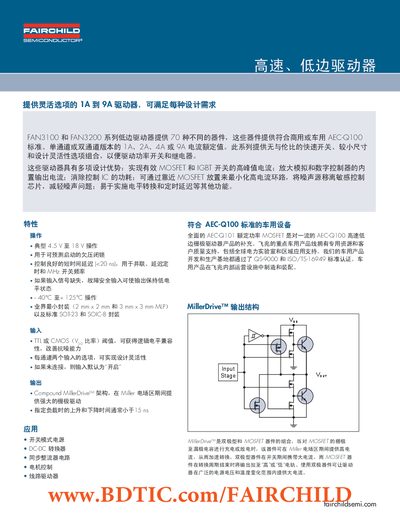

The Fairchild Semiconductor FAN3100/FAN3200 series high‑side/low‑side drivers provide fast switching, low‑voltage operation, and automotive‑grade AEC‑Q100…
The FAN3100/FAN3200 series offers high‑speed, low‑side driver solutions with typical operation from 4.5 V to 18 V and a temperature range of –40 °C to +125 °C. They feature a Compound MillerDrive™ architecture that delivers strong gate drive during the Miller region, with typical rise/fall times under 20 ns and fault‑safe inputs that hold the output low when the input signal is missing.
These drivers are available in ultra‑small MLP packages (2 mm × 2 mm and 3 mm × 3 mm) as well as standard SOT‑23 and SOIC‑8 footprints. They support current ratings of 1 A, 2 A, 4 A, and 9 A, meet AEC‑Q100 automotive standards, and are suited for switch‑mode power supplies, DC‑DC converters, synchronous rectifiers, motor control, and line drivers. This manual is written in Chinese.
| Operating voltage range | 4.5 V to 18 V |
|---|---|
| Operating temperature range | –40 °C to +125 °C |
| Package sizes | 2 mm × 2 mm MLP, 3 mm × 3 mm MLP, SOT‑23, SOIC‑8 |
| Current ratings | 1 A, 2 A, 4 A, 9 A |
The drivers operate from 4.5 V up to 18 V.
Yes, they comply with the AEC‑Q100 automotive qualification.
They are offered in 2 mm × 2 mm and 3 mm × 3 mm MLP packages, as well as standard SOT‑23 and SOIC‑8 packages.
