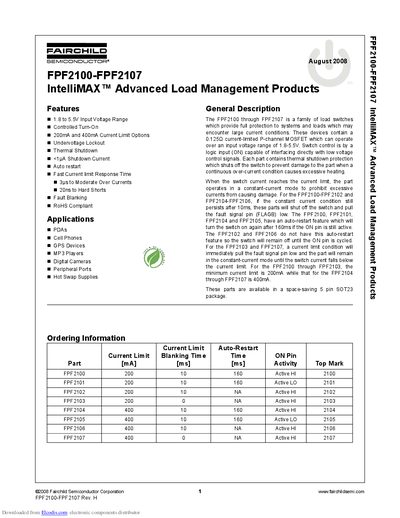

The FPF2100‑FPF2107 family are 5‑pin SOT23 load‑switch ICs with 1.8‑5.5 V input range, selectable 200 mA/400 mA current limits and built‑in protection features.
The FPF2100‑FPF2107 IntelliMAX™ Advanced Load Management products are load‑switch ICs that protect systems and loads from over‑current, undervoltage and over‑temperature conditions. Each device contains a 0.125 Ω P‑channel MOSFET and operates from 1.8 V to 5.5 V input voltage. Features include controlled turn‑on, auto‑restart (on selected versions), fault flag output, and fast current‑limit response.
The family is offered in a compact 5‑pin SOT23 package and is intended for portable electronics such as PDAs, cell phones, GPS devices, MP3 players, digital cameras, peripheral ports and hot‑swap supplies. Detailed electrical characteristics, pin descriptions, application circuits and layout recommendations are provided for designers.
| Input Voltage Range | 1.8 V – 5.5 V |
|---|---|
| Current Limit Options | 200 mA or 400 mA |
| Package | 5‑pin SOT23 |
| Shutdown Current | < 1 µA |
| Thermal Shutdown Threshold | 140 °C |
The devices operate with an input voltage from 1.8 V to 5.5 V.
The FLAGB pin goes low (active LO) to signal over‑current, undervoltage, or over‑temperature faults.
FPF2100, FPF2101, FPF2104 and FPF2105 include auto‑restart; FPF2102 and FPF2106 do not.
