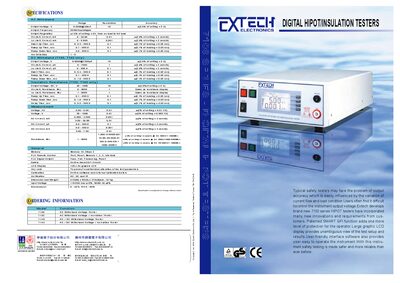

The Extech 7100 Series HIPOT/Insulation Testers data sheet provides specifications, safety features, and ordering information for models 7130, 7132, 7140…
The Extech 7100 Series HIPOT/Insulation Testers are digital safety testers offering AC and DC withstanding voltage, insulation resistance measurement, and built‑in safety functions such as Smart GFI. The series includes four models (7130, 7132, 7140, 7142) that can be linked together for multi‑unit testing.
Key specifications include a 0‑5000 V output range, 50/60 Hz output frequency, programmable ramp up/down times, and up to 10 memory slots with three steps each. The unit features a 128 × 64 graphic LCD, front‑panel lockout, and TÜV‑GS certification for worldwide compliance.
| Output Voltage Range | 0 – 5000 V @ 20 mA |
|---|---|
| Output Frequency | 50/60 Hz ±100 ppm |
| Output Regulation | ±1.0 % of setting + 5 V |
| Input Voltage | 115/230 Vac ±15%, 50/60 Hz |
| Memory Capacity | 10 memories, 3 steps each |
The instrument can store up to 10 memories, each configurable with up to three test steps.
It operates from 115 V or 230 V AC, ±15% tolerance, at 50/60 Hz.
