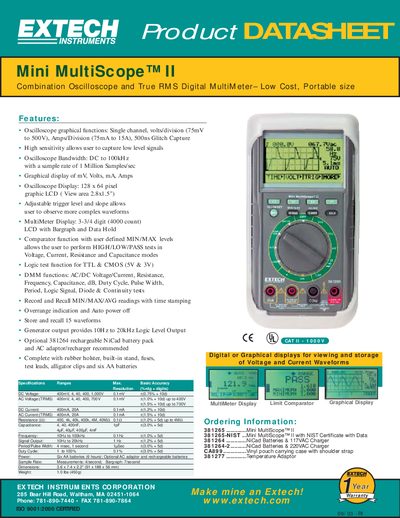

The Extech Mini MultiScope II datasheet provides specifications, features, and ordering information for the portable oscilloscope and true RMS multimeter.
The Mini MultiScope II combines a single‑channel oscilloscope with a true RMS digital multimeter in a compact, portable unit. It offers graphical functions, high sensitivity, a 128 × 64 pixel LCD, adjustable trigger, logic test, comparator, and a range of DMM functions including voltage, current, resistance, frequency, capacitance, and diode testing.
The datasheet lists detailed performance data such as a 100 kHz oscilloscope bandwidth, 1 M‑sample‑per‑second rate, measurement accuracies, frequency range, power options (six AA batteries or optional AC adaptor/rechargeable NiCad pack), dimensions, weight, and ordering part numbers.
| Oscilloscope Bandwidth | DC to 100 kHz |
|---|---|
| Sample Rate | 1 Million Samples/sec |
| DC Voltage Accuracy | ±(0.75% + 10d) |
| AC Current Accuracy | ±(1.5% + 10d) |
| Frequency Range | 10 Hz to 100 kHz |
| Power Options | Six AA batteries (≈6 h) or optional AC adaptor/rechargeable NiCad pack |
| Dimensions | 3.6 × 7.4 × 2.2 in (91 × 188 × 56 mm) |
| Weight | 1.0 lb (450 g) |
The oscilloscope bandwidth is DC to 100 kHz.
It can capture up to 1 Million samples per second.
It runs on six AA batteries for about six hours, and can also use an optional AC adaptor or a rechargeable NiCad battery pack.
