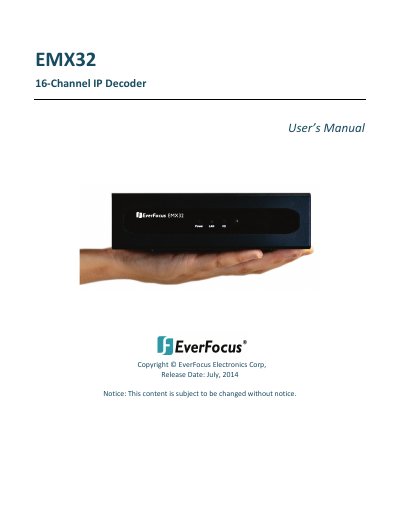

The EverFocus EMX32 IP Decoder User Manual provides installation, operation, and configuration instructions for the 16‑channel HD IP decoder.
The EMX32 is a 16‑channel IP decoder that can simultaneously decode up to four HD (1080P) or SD (720P) video streams and display them on up to four screen divisions. It supports ONVIF and RTSP‑compliant cameras and offers HDMI and VGA video outputs that can be used at the same time, plus an RS‑485 port for joystick or keyboard control.
The manual covers safety precautions, detailed installation steps, network configuration, OSD menu navigation, PTZ control, alarm I/O setup, remote access via web browser, and specifications such as power requirements, operating temperature, and dimensions. Appendices provide network overview, router port‑forwarding guidance, and IR remote control usage.
| Model Name | EMX32 |
|---|---|
| Channel Number | 16 CH |
| Video Codec | H.264 |
| Video Output (HDMI) | 720×480, 1024×768, 1920×1080 |
| Video Output (VGA) | 720×480, 1024×768, 1920×1080 |
| Power Source | 12VDC/5A (max 60 W) |
| Operating Temperature | 0 °C ~ 40 °C |
| Dimensions (L×W×H) | 160 mm × 160 mm × 45 mm |
The EMX32 supports 16 channels.
It provides both HDMI and VGA video outputs, each supporting 720×480, 1024×768, and 1920×1080 resolutions.
The decoder requires a 12 V DC power source with up to 5 A (maximum 60 W).
It can operate between 0 °C and 40 °C (32 °F ~ 104 °F).
