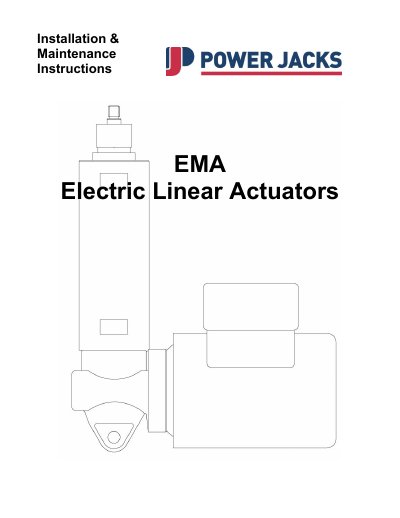

This manual provides installation, maintenance, and technical specifications for EMA electric linear actuators (Models I, C, H).
The document serves as an installation and maintenance guide for EMA electric linear actuators. It covers safety instructions regarding authorized use and personnel qualifications, followed by a description of the actuator's mechanical components including trapezoidal or ball lead screws driven by electric motors.
Detailed sections include technical data tables comparing intermittent (Model I), continuous (Model C), and high-speed continuous (Model H) variants. The guide provides step-by-step instructions for mounting options such as clevis, trunnion, and fork ends, adjusting limit switches and clutch settings, performing electrical installations for various motor types, and routine maintenance procedures.
| Max. Lifting Force | 10 kN |
|---|---|
| Model I Usage Limit | Less than 10 starts/day, 10 hours/day |
| Model C Usage Limit | More than 10 starts/day |
| Motor Mounting Standard | IEC 63C Face Flange |
No, it is not permitted to make any alterations to safety features or design without written consent.
No, their positions are fixed based on the ordered stroke length and cannot be changed later.
