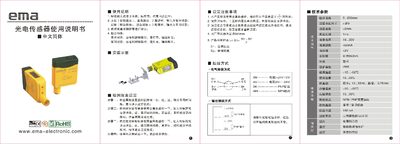

This manual explains how to install and operate EMA's photoelectric sensor. It covers wiring connections, LED indicator meanings, and step‑by‑step procedures for setting background and object detection distances.
Key technical data such as detection range, response time, supply voltage, and protection rating are listed, along with details on output type (NPN/PNP, selectable NO/NC) and LED status indicators for normal operation, detection, and fault conditions. This manual is written in Chinese.
| Detection distance | 0–600 mm |
|---|---|
| Light source wavelength | 650 nm (red) |
| Output type | NPN/PNP dual, selectable NO/NC |
| LED indicators | Three‑color LED (yellow, green, red) |
The factory default background distance is 600 mm.
