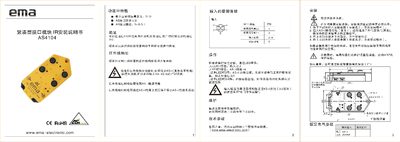

This guide provides instructions for installing the EMA AS4104 compact interface module. It describes the module’s features, AS‑interface version 3.0, addressing scheme (default address 0, up to 31 slave modules per master) and infrared (IR) addressing procedures.
The document details the connection of input pins, interpretation of LED status lights, maintenance requirements, and step‑by‑step installation, including power‑off precautions, mounting, cable routing, and protection of the socket to achieve IP67 rating. This manual is written in Chinese.
| Maximum slave modules per master | 31 |
|---|---|
| AS‑interface version | 3.0 |
| Default address | 0 |
| Current consumption | 200 mA |
Cover the socket with the supplied protective cover to achieve an IP67 protection rating.
