This is a spec sheet for an oil pressure gauge

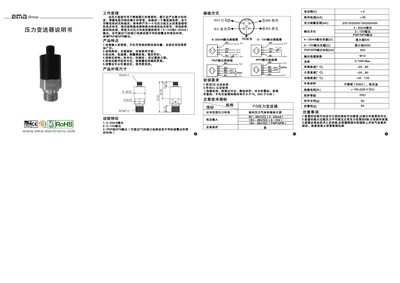

This manual describes the operating principle, key features and technical specifications of the SMA Electronic PB pressure transmitter. It explains how the pressure sensor converts pressure into a proportional voltage signal and then into standard output signals.
The document also provides installation notes, wiring diagrams for 4‑20 mA and 0‑10 V outputs, and safety precautions for use with gas or liquid media under various environmental conditions. This manual is written in Chinese.
| Pressure measurement range | 2‑20 kPa / 50‑1100 kPa / 200‑1400 kPa |
|---|---|
| Output options | 4‑20 mA or 0‑10 V |
| Power consumption | 0.72 W max |
| Operating temperature range | -40 °C to 100 °C |
| Shock resistance | 50 g |
| Material | Stainless steel (S304) |
It supports both 4‑20 mA and 0‑10 V output signals.
The device operates from –40 °C up to 100 °C.
Maximum power consumption is 0.72 W.
