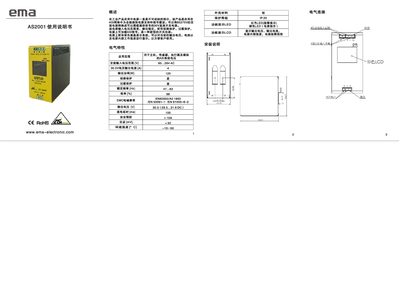

The manual introduces the AS2001, describing its LED indicator, color LCD display, and functions such as temperature monitoring and power status. It explains how the device shows internal temperature and power‑related information to help users operate it safely.
Installation instructions cover electrical connections, including AC input and AS‑bus wiring. The electrical characteristics section lists input voltage range, output voltage and current, power rating, protection features, frequency range, efficiency, standby current, and environmental limits, along with relevant safety precautions. This manual is written in Chinese.
| Input voltage range | 85‑264 V AC |
|---|---|
| Output voltage | 30.5‑31.5 V DC |
| Output current | 4 A |
| Output power | 120 W |
| Operating frequency | 47‑69 Hz |
| Standby current | 100 mA |
| Ambient temperature range | -10 °C to 60 °C |
The AS2001 accepts an input voltage from 85 V to 264 V AC.
The device includes both short‑circuit and overload protection.
The output voltage is between 30.5 V and 31.5 V DC.
