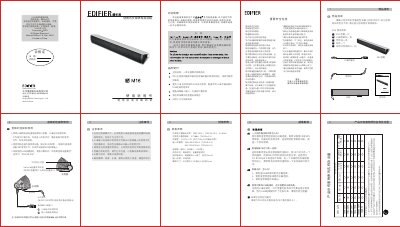

This manual provides instructions for connecting, operating, and troubleshooting the Edifier M16 portable multimedia powered speaker.
The Edifier M16 is a portable multimedia powered speaker featuring an all-aluminum structure. It utilizes four full-range speakers combined with a passive radiator to reproduce balanced audio performance. The device integrates USB bus power supply and streaming audio, includes a dedicated USB transmission line for efficiency, and features a line input interface for external sources. This manual is written in Chinese.
| Power Amplifier Output Power | RMS 2W X 2 (THD+N=10%, f 0=1KHz) |
|---|---|
| Signal-to-Noise Ratio | ≥75dBA (THD+N=1%) |
| Input Sensitivity (USB) | 800±50mV (THD+N=1%) |
| Input Sensitivity (AUX) | 500±50mV (THD+N=1%) |
| Speaker Unit | Dual 1 1/4 inch per channel (32mm diameter) |
| Dimensions | 261(W) X 36(H) X 44(D) mm |
The package includes one M16 speaker, one USB connection cable, one audio cable, one cloth bag, and one manual/warranty card.
Connect the external device to the AUX input using the audio cable. The system will prioritize playing the AUX source over USB.
This may be caused by a mismatch in the connection between the CD-ROM and the sound card, where one channel signal is shorted to ground.
This is a normal phenomenon because the USB power supply cannot provide sufficient power for high volume levels.
