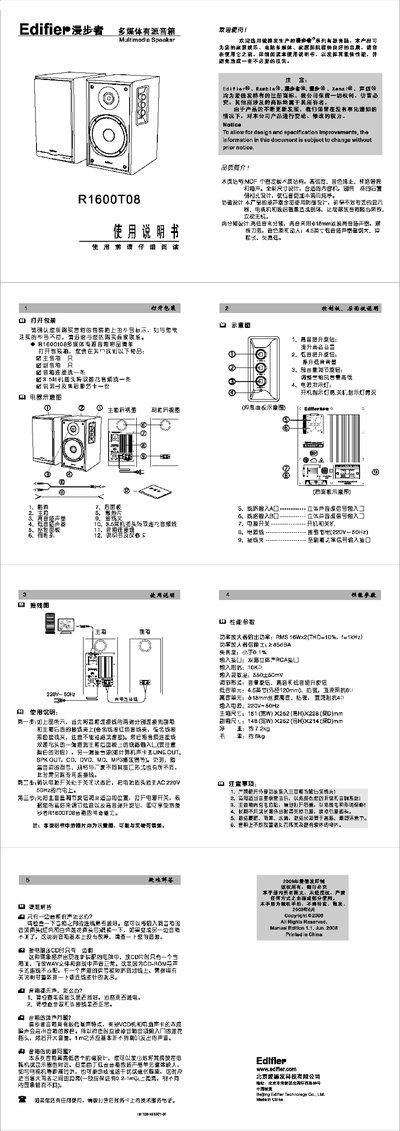

This manual guides you through unpacking the R1600T08, checking the item list, and connecting the speaker to power and audio sources. Detailed wiring diagrams and control‑panel functions are included to help you configure the speaker correctly.
The document also lists the speaker’s technical specifications, safety precautions, and a troubleshooting section that addresses common issues such as one‑sided sound or no sound at all. Warranty and service information are provided at the end. This manual is written in Chinese.
| Output Power (RMS) | 16 W × 2 |
|---|---|
| Total Harmonic Distortion | < 0.19 % |
| Input Impedance | 10 kΩ |
| Input Sensitivity | 550 ± 50 mV |
| Input Connector | Dual‑RCA stereo |
| Dimensions (Main Box) | 151 mm W × 252 mm H × 228 mm D |
| Net Weight | ≈ 7.2 kg |
Check that the speaker connections are secure and try swapping the audio plugs between the two speakers; if the other speaker then works, the issue is with the source or cable.
Make sure the power plug is firmly inserted and the outlet is powered, then verify that the audio source and cables are functioning.
The CD‑ROM and sound‑card connections may be mismatched, causing one channel to be shorted to ground; re‑wire the connection according to the CD‑ROM manual.
