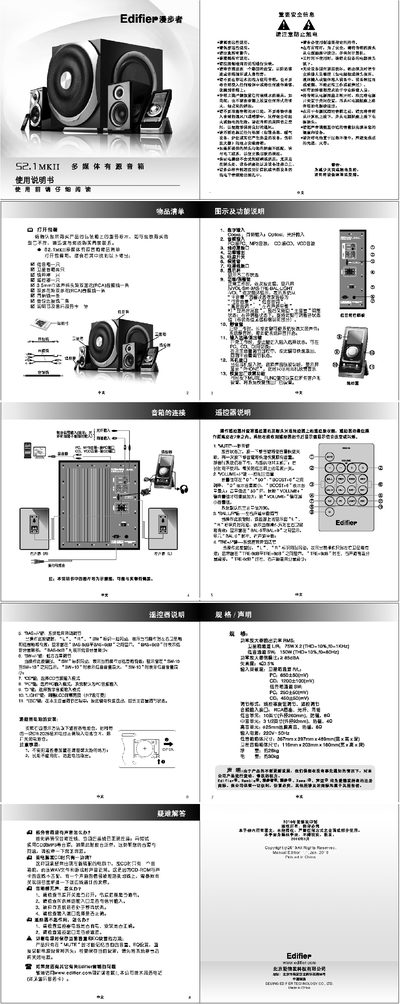

This manual begins with important safety information, including warnings about electric shock, water exposure, and proper placement of the speakers. It also lists the items included in the package and explains how to connect the speakers to power and audio sources such as PC, CD, and MP3.
The remote control functions are described in detail, covering mute, volume, balance, treble, bass, and input selection. Battery replacement instructions, technical specifications, and a troubleshooting section for common issues like no sound or one‑sided audio are also provided. This manual is written in Chinese.
| Speaker channel L/R power | 75W×2 (THD=10%, f0=1kHz) |
|---|---|
| Bass channel power | 150W (THD=10%, f0=80Hz) |
| Power amplifier output | >85dBA |
| Total harmonic distortion | ≤0.5% |
| Input sensitivity (PC) | 650 ± 5 mV |
| Input sensitivity (CD) | 1200 ± 100 mV |
| Bass channel input sensitivity (PC) | 250 ± 5 mV |
| Bass channel input sensitivity (CD) | 450 ± 50 mV |
| Low‑frequency driver | 10 in (260 mm), magnetically shielded |
| Mid‑frequency driver | 3.5 in (92 mm), magnetically shielded |
| Tweeter | 6.25 mm, magnetically shielded |
| Power supply | 220 V ~ 50 Hz |
| Bass speaker dimensions | 367 mm × 397 mm × 489 mm |
| Satellite speaker dimensions | 116 mm × 203 mm × 160 mm |
| Weight | ≈28 kg |
