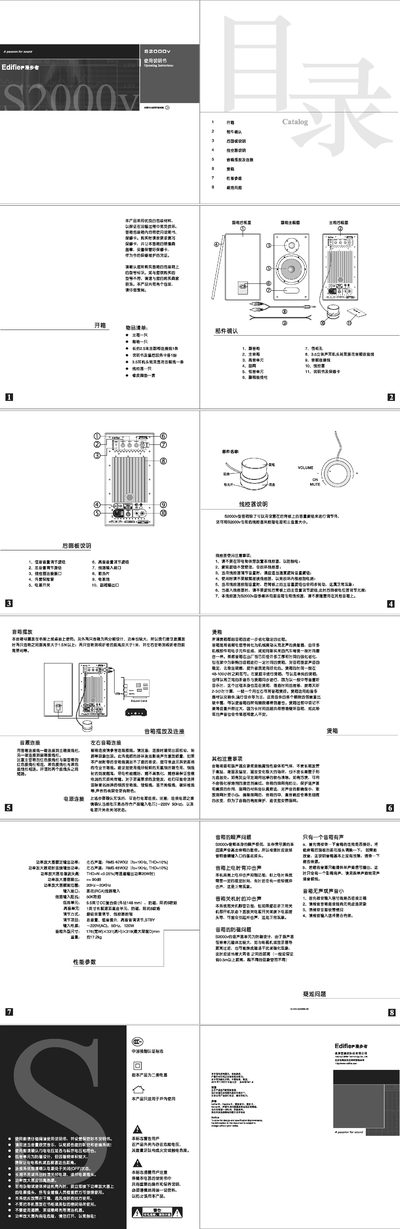

This manual covers all aspects of the Edifier S2000v active speaker, including a parts list, rear‑panel description, remote‑control functions, and detailed wiring instructions. It also explains proper speaker placement, break‑in (burn‑in) procedures, and safety precautions for reliable operation.
Performance specifications such as power ratings, impedance, dimensions, and recommended operating conditions are listed, followed by a troubleshooting section that helps resolve common issues like noise, no sound, or power‑on clicks. This manual is written in Chinese.
| Rated Output Power | RMS 40W ×2 per channel |
|---|---|
| Input Impedance | 50 kΩ |
| High‑frequency Driver | 1 in dome, 6 Ω, magnetically shielded |
| Dimensions (W×H×D) | 176 mm × 331 mm × 319 mm |
| Weight | ≈17.2 kg |
Connect the red terminals of the main and sub speakers together, and the black terminals together, making sure no short circuit occurs.
The S2000v includes an in‑rush‑current suppression feature; a single‑speaker click at power‑on is normal and not a fault.
