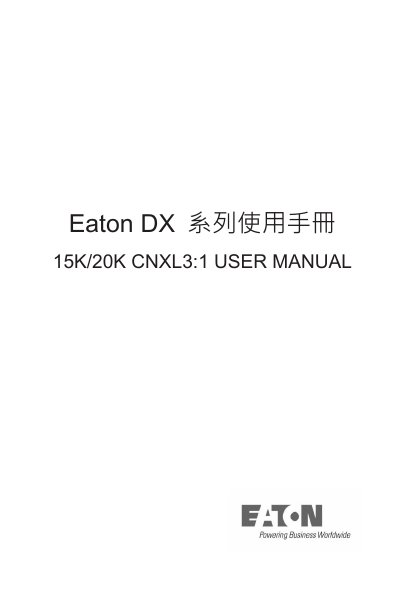

Chinese user manual for Eaton DX 15K/20K CNXL3:1 UPS covering safety, installation, operation, battery care and troubleshooting.
The Eaton DX 15K/20K CNXL3:1 series is an online double‑conversion UPS providing reliable AC power for critical equipment. It supports three‑phase input, single‑phase output and optional external battery packs for extended runtime.
The manual includes safety precautions, step‑by‑step installation, wiring diagrams, control‑panel description, operating procedures, battery maintenance, and a troubleshooting guide with fault codes and remedies. This manual is written in Chinese.
| Dimensions (W×D×H) | 248×496×616 mm |
|---|---|
| Net weight | 31 kg |
| Apparent power / Active power | 15 kVA / 13.5 kW (15K model) – 20 kVA / 18 kW (20K model) |
| Input voltage range (line) | 208 VAC – 476 VAC |
| Power factor | 0.99 |
| Maximum input current (15K model) | 30 A |
Leave a safety distance around the UPS on all sides to guarantee adequate airflow.
Use a dry‑powder fire extinguisher; liquid extinguishers can cause electric shock.
Store the UPS in a dry environment at temperatures between –25 °C and +55 °C.
The maximum input current is 30 A.
