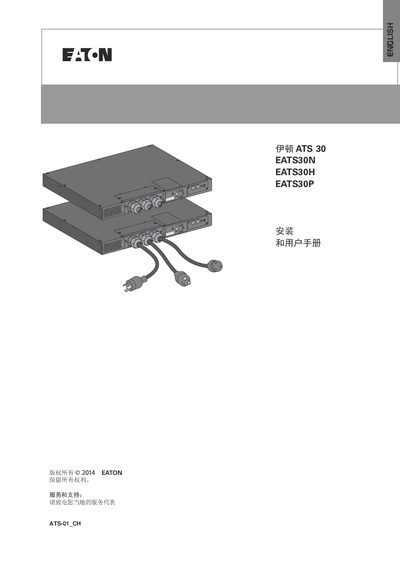

Eaton ATS-01_CH user manual with safety instructions, installation steps, operation guide, troubleshooting and specifications.
The Eaton ATS-01_CH manual provides comprehensive safety guidelines, installation procedures, and operating instructions for the ATS‑30 series automatic transfer switches. It includes details on wiring, rack mounting, power‑cable connections, and network configuration, as well as a full list of specifications and environmental limits.
Additional sections cover troubleshooting, SNMP IPv6 management, command settings, and SSH key generation for secure remote access. The document is intended for qualified technicians and system integrators who need to install, configure, and maintain the ATS equipment. This manual is written in Chinese.
| Working Voltage | 180 V – 264 V |
|---|---|
| Rated Current (CE model) | 30 A |
| Operating Frequency | 45 Hz – 65 Hz |
| Dimensions (H × W × D) | 1.7 in × 17.4 in × 15.4 in (43 mm × 440 mm × 390 mm) |
| Input Cable Length (max) | 4.5 m (14.76 ft) |
| Safety Certifications | UL 60950, CE IEC 60950, PSE (JP) |
A D‑curve 30 A circuit breaker is recommended for EATS30H and EATS30P; for the EATS30N model a D‑curve 32 A breaker is advised.
The ATS should be stored in a dry place with temperatures between –15 °C and +50 °C (5 °F to 122 °F).
