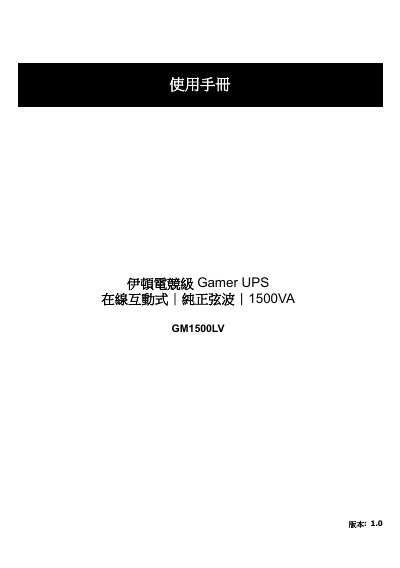

The Eaton GM1500LV UPS user manual provides safety instructions, installation steps, operation guidance, ECO mode setup, troubleshooting, specifications and…
The GM1500LV is a 1500 VA (900 W) online interactive UPS designed to protect computers and sensitive electronics from power interruptions and disturbances. It features a pure sine‑wave output, LCD display, USB charging ports and optional HID functions.
This manual covers safety precautions, unpacking, product overview, installation, ECO energy‑saving mode configuration, normal operation, troubleshooting, detailed technical specifications and warranty details. This manual is written in Chinese.
| Capacity | 1500 VA / 900 W |
|---|---|
| Input Voltage | 110 VAC 50/60 Hz |
| Input Voltage Range | 81‑132 VAC |
| Input Current | 13.6 A |
| Output Voltage Regulation | ±10 % (battery mode) |
| Conversion Time | 6 ms typical, 10 ms max |
| Output Voltage | 110 VAC |
| Output Current | 13.6 A |
| Output Waveform | Pure sine wave |
| Battery Specification | 12 V / 9 Ah × 2 |
| Charging Time | 6‑8 h to 90 % capacity |
| Dimensions (D×W×H) | 430 × 99 × 280 mm |
| Net Weight | 14.1 kg |
| Noise Level | <45 dB @ 1 m |
| Operating Humidity | 0‑90 % RH, 0‑40 °C |
Charge the UPS for at least 5 hours before its first operation.
Press and hold the power button for 10 seconds to reset the remote‑panel communication.
ECO mode is disabled by default.
The UPS can operate up to a maximum altitude of 1000 m; above that the load must be reduced.
