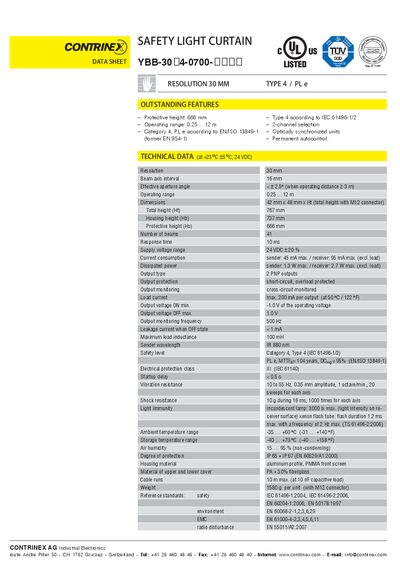

Technical data sheet for the CONTRINEX YBB-30 4-0700 safety light curtain, detailing dimensions, electrical parameters and safety ratings.
The YBB-30 4-0700 safety light curtain from CONTRINEX provides a 41‑beam infrared barrier with a resolution of 30 mm and an operating range from 0.25 m to 12 m. It features a compact housing (42 mm × 48 mm × 767 mm) and IP65 + IP67 protection, suitable for harsh industrial environments.
Key electrical specifications include a 24 VDC supply (±20 %), 10 ms response time, 2 PNP outputs with short‑circuit and overload protection, and a maximum load current of 200 mA per output. LED indicators on the sender and receiver units give visual status of power, test mode and alignment.
| Resolution | 30 mm |
|---|---|
| Beam axis interval | 16 mm |
| Operating range | 0.25 m … 12 m |
| Number of beams | 41 |
| Response time | 10 ms |
| Supply voltage range | 24 VDC ± 20 % |
| Current consumption (sender) | 45 mA max |
| Current consumption (receiver) | 95 mA max |
| Output type | 2 PNP outputs |
| Load current per output | 200 mA (at 50 °C) |
| Output monitoring frequency | 500 Hz |
| Leakage current (OFF state) | < 1 mA |
| Maximum load inductance | 100 mH |
| Sender wavelength | IR 880 nm |
| Safety level | Category 4, Type 4, PL e |
| IP protection class | IP65 + IP67 |
| Weight | 1580 g (with M12 connector) |
| Ambient temperature range | -35 °C … +60 °C |
The response time is 10 ms.
It operates from 24 VDC with a tolerance of ±20 %.
The device meets IP65 plus IP67 protection.
